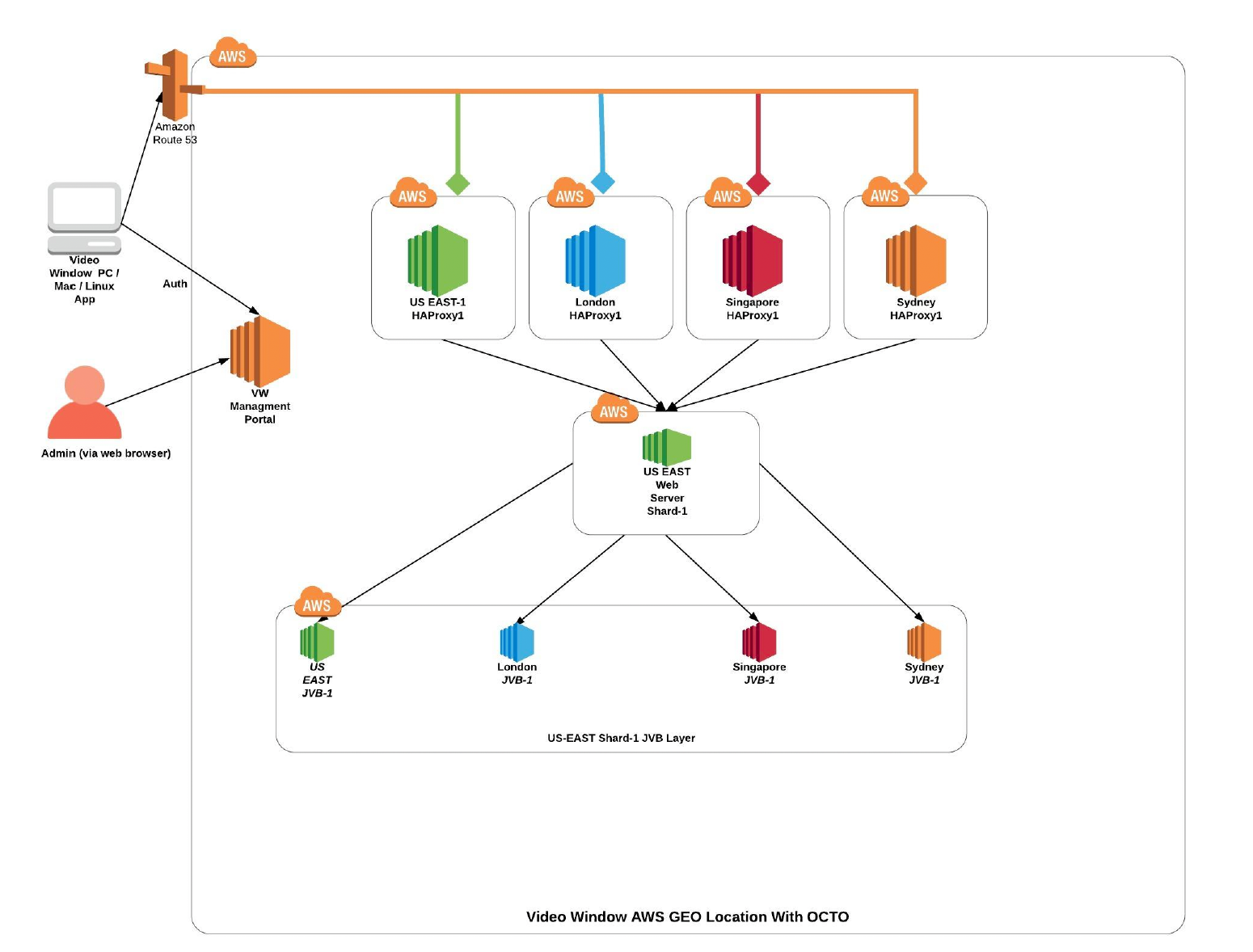

In this section a global overview of the Video Window Architecture is provided :





Video Window components :


1- Shard Server :

  1. - WebRTC compatible JavaScript application that uses Media Videobridge to provide high
  2. quality, scalable video conferences. Build upon React and React Native.
  3. - Server-side focus component used in Video Window conferences that manages media
  4. sessions and acts as load balancer between each of the participants and the Media
  5. Bridges.
  6. - Prosody - XMPP server used for signaling

2- Media Bridge “JVB” - WebRTC compatible server designed to route video streams amongst

participants in a conference.


3- HAProxy, used as Load balancer for high availability and Geo Location support.


4- Laravel based management portal application used for authentication and authorization of

clients and used as well to implement some APIs required by the VW Desktop and Mobile Apps.



XMPP Signaling :

XMPP is a communications protocol for message-oriented middleware based on XML. XMPP

provides a general framework for messaging across a network. It is pretty much the same piece

of technology as the one Google uses for Hangouts.


XMPP stands for Extensible Messaging and Presence Protocol (XMPP) which is an open XML

technology for real-time communication, which powers a wide range of applications including

instant messaging, presence and collaboration.


To understand what this really means, let’s go on a journey from P back to X…


P — Protocol

XMPP is a protocol; a set of standards that allows systems to talk to each other. XMPP is used

widely across the web, but is often unadvertised. The protocol (or standards) are looked after by

the XSF (link).


P — Presence

The presence indicator tells the servers that you are online / offline / busy. In technical terms,

presence determines the state of an XMPP entity; in layman terms, whether you are there and

ready to receive messages or not.


M — Messaging

The ‘messaging’ part of XMPP is the ‘piece’ you see; the Instant Message (IM) sent between

clients. XMPP has been designed to send all messages in real-time using a very efficient push

mechanism; whereas existing web based mechanisms often make many unnecessary requests

introducing network load, and are consequently not real-time.


X — eXtensible

Defined in an open standard and using an open systems approach of development and

application, XMPP is designed to be extensible. In other words, it has been designed to grow

and accommodate changes.


WebRTC signaling refers to the process of setting up, controlling, and terminating a

communication session. In order for two endpoints to begin talking to one another, three types

of information must be exchanged:


  1. Session control information determines when to initialize, close, and modify communications sessions. Session control messages are also used in error reporting.
  2. Network Data reveals where endpoints are located on the Internet (IP address and port) so that participants can communicate to each other.
  3. Media Data is required to determine the codecs and media types. If endpoints attempting to start a communications session have differing resolution and codec configurations, then a successful conversation is unlikely. Signaling that exchanges media configuration information between peers occurs by using an offer and answer in the Session Description Protocol (SDP) format.

In a nutshell, WebRTC signaling allows for users to exchange metadata to coordinate

communication.


RTCPeerConnection is the API Video Window uses to establish peer connections and transfer

audio and video media. In order for the connection to work, RTCPeerConnection must acquire

local media conditions (resolution and codec capabilities, for instance) for metadata, and gather

possible network addresses for the application's host. The signaling mechanism for passing this

crucial information back and forth is not built into the WebRTC API.


The WebRTC specification includes APIs for communicating with an ICE (Internet Connectivity

Establishment) Server, but the signaling component is not part of it. Signaling is needed in order

for two peers to share how they should connect. Usually this is solved through a regular

HTTP-based Web API (i.e., a REST service or other RPC mechanism) where web applications

can relay the necessary information before the peer connection is initiated.


The following code snippet shows how this fictitious signaling service can be used to send and

receive messages asynchronously. This will be used in the remaining examples in this guide

where necessary.


// Set up an asynchronous communication channel that will be

// used during the peer connection setup

const signalingChannel = new SignalingChannel(remoteClientId);

signalingChannel.addEventListener('message', message => {

// New message from remote client received

});


// Send an asynchronous message to the remote client

signalingChannel.send('Hello!');


Each peer connection is handled by a RTCPeerConnection object. The constructor for this class

takes a single RTCConfiguration object as its parameter. This object defines how the peer

connection is set up and should contain information about the ICE servers to use.


Once the RTCPeerConnection is created we need to create an SDP offer or answer, depending

on if we are the calling peer or receiving peer. Once the SDP offer or answer is created, it must

be sent to the remote peer through a different channel. Passing SDP objects to remote peers is

called signaling and is not covered by the WebRTC specification.


To initiate the peer connection setup from the calling side, we create a RTCPeerConnection

object and then call createOffer() to create a RTCSessionDescription object. This session

description is set as the local description using setLocalDescription() and is then sent over our

signaling channel to the receiving side. We also set up a listener to our signaling channel for

when an answer to our offered session description is received from the receiving side.


async function makeCall() {

const configuration = {'iceServers': [{'urls': 'stun:stun.l.google.com:19302'}]}

const peerConnection = new RTCPeerConnection(configuration);

signalingChannel.addEventListener('message', async message => {

if (message.answer) {

const remoteDesc = new RTCSessionDescription(message.answer);

await peerConnection.setRemoteDescription(remoteDesc);

}

});

const offer = await peerConnection.createOffer();

await peerConnection.setLocalDescription(offer);

signalingChannel.send({'offer': offer});

}


On the receiving side, we wait for an incoming offer before we create our RTCPeerConnection

instance. Once that is done we set the received offer using setRemoteDescription(). Next, we

call createAnswer() to create an answer to the received offer. This answer is set as the local

description using setLocalDescription() and then sent to the calling side over our signaling

server.


const peerConnection = new RTCPeerConnection(configuration);

signalingChannel.addEventListener('message', async message => {

if (message.offer) {

peerConnection.setRemoteDescription(new RTCSessionDescription(message.offer));

const answer = await peerConnection.createAnswer();

await peerConnection.setLocalDescription(answer);

signalingChannel.send({'answer': answer});

}

});


Before two peers can communicate using WebRTC, they need to exchange connectivity

information. Since the network conditions can vary depending on a number of factors, an

external service is usually used for discovering the possible candidates for connecting to a peer.

This service is called ICE and is using either a STUN or a TURN server. STUN stands for

Session Traversal Utilities for NAT, and is usually used indirectly in most WebRTC applications.


TURN (Traversal Using Relay NAT) is the more advanced solution that incorporates the STUN

protocols and most commercial WebRTC based services use a TURN server for establishing

connections between peers. The WebRTC API supports both STUN and TURN directly, and it is

gathered under the more complete term Internet Connectivity Establishment. When creating a

WebRTC connection, we usually provide one or several ICE servers in the configuration for the

RTCPeerConnection object.


Once a RTCPeerConnection object is created, the underlying framework uses the provided ICE

servers to gather candidates for connectivity establishment (ICE candidates). The event

icegatheringstatechange on RTCPeerConnection signals in what state the ICE gathering is

(new, gathering or complete).


While it is possible for a peer to wait until the ICE gathering is complete, it is usually much more

efficient to use a "trickle ice" technique and transmit each ICE candidate to the remote peer as it

gets discovered. This will significantly reduce the setup time for the peer connectivity and allow

a video call to get started with less delays.


Once ICE candidates are being received, we should expect the state for our peer connection

will eventually change to a connected state. To detect this, we add a listener to our

RTCPeerConnection where we listen for connectionstatechange events.


// Listen for connectionstatechange on the local RTCPeerConnection

peerConnection.addEventListener('connectionstatechange', event => {

if (peerConnection.connectionState === 'connected') {

// Peers connected!

}

});


Turn Server :

For most WebRTC applications to function a server is required for relaying the traffic between

peers, since a direct socket is often not possible between the clients (unless they reside on the

same local network). The common way to solve this is by using a TURN server. The term stands

for Traversal Using Relay NAT, and it is a protocol for relaying network traffic.


Video Window uses a self-hosted open-source implementation of COTURN project as Turn and

Stun server.
